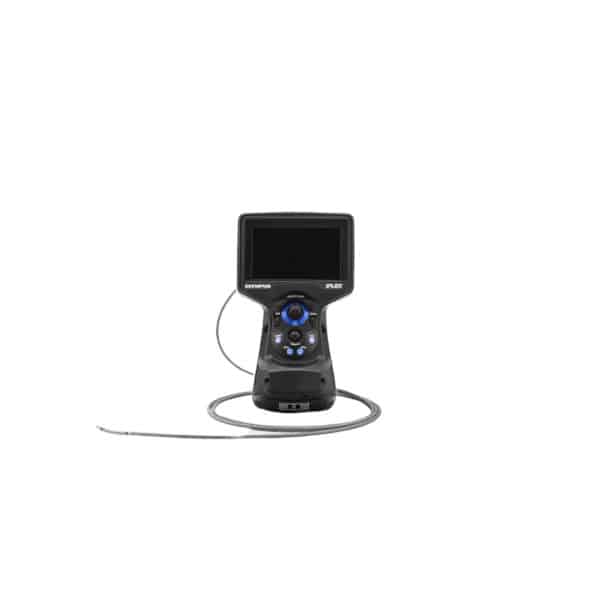

Olympus Iplex G Lite



Transportabelt videoskop med værdifulde billedfunktioner i en lille og robust krop. Let i vægt og kan bruges på udfordrende områder, hvilket betyder at brugeren kan udføre jobbet lettere og med et visuelt inspektionsværktøj med fantastisk kvalitet i billed.

Olympus G Lite bringer lys og billede inde fra den genstand, der ønskes inspiceret. Således kan kvalitet og tilstand vurderes, uden at skulle skille emnet ad. Med den lave vægt, ergonomiske udformning, stærke lys og fremragende billedkvalitet henvender G Lite sig til en bred vifte af applikationer som inspektion af turbiner, bil-, diesel-, og gasmotorer, vindmøllegear og -vinger samt sikkerhedsformål.

Ved interesse og et ønske om mere information, kontakt os her eller brug formularen nederst på siden. Mulighed for demonstration.

Beskrivelse

Med Iplex G Lite tilbyder Olympus et bærbart og transportvenligt kvalitetsinstrument. Kontrolenheden inkl. skærm holdes i den ene hånd mens den fleksible slange føres ind i emnet med den anden hånd. Det elektroniske joystick vinkler kameraet i den fjerne ende op/ned og højre/venstre. Når det ønskede punkt for inspektion er fundet låses slangen og man er klar til at tage billeder eller video, der lagres på SD-kort. Til brug for dokumentation kan dato, tid og fri tekst inkluderes på billederne. For yderligere at sikre dokumentation kan den seneste halve times inspektion gemmes på separat, udskifteligt micro SD-kort.

Den udskiftelige LED lyskilde tilbyder stærkt lys, der kan reguleres automatisk og manuelt direkte fra kontrolenheden. Det er let at tilgå menuer og tekst via den trykfølsomme skærm. Er inspektionsstedet meget mørkt, kan lysfølsomheden øges, så det mørke i billedet fremstår tydeligt, uden at det lyse bliver over belyst.

For at opnå optimal inspektion kan synsretning, synsfelt og fokusområde ændres ved at skifte den optiske adapter, der sidder for enden af indføringsslangen. Arbejdes der i områder, hvor olie kan komme i kontakt med den optiske adapter, sikrer kapillær-riller at olien drænes væk. Herved kan inspektionen fortsætte uden at man behøver tage endoskopet ud for at gøre det rent.

Er der brug for at en ekstra observatør skal se med på inspektionen, kan billedet streames via wi-fi adapter og tilhørende iOS app, der også kan lagre billeder og videosekvenser.

Ved behov for et større billede ved delvist stationært brug kan signalet overføres via HDMI til en separat skærm.

I kufferten:

– Selve videoendoskopet med udskifteligt batteri monteret

– SD-kort

– AC-adapter

– HDMI-kabel

– Æske til optiske adaptere

– Håndstrop

– Strop til indføringsslangen

– Brugsanvisning

Fordele:

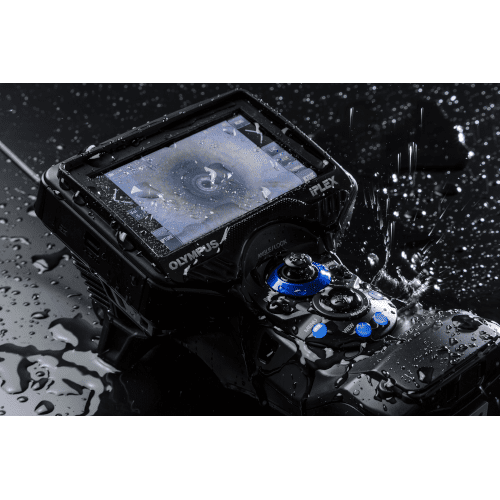

Bærbart og betjening med én hånd. Særdeles holdbart – overholder MIL-STD-810G med hensyn til vibration, fald, vandtæthed, fugt, salttåge, støv og regn.

Mange af de egenskaber, der normalt findes i større enheder.

Begrænsninger:

Indføringsslangen er en fast del af instrumentet. Ønskes udskiftelig indføringslange kan model Iplex GT/GX være et glimrende alternativ.

Ekstra tilkøb:

Optisk adapter, ekstra batteri, stift indføringsrør med håndtag, UV-lyskilde, IR lyskilde, wi-fi adapter, micro SD kort, kortlæser, nakkestrop, magisk arm, Pelicase for belastende transport.

Optioner:

Opdatering til måling.

Iplex G Lite specifikationer

BASIC FUNCTIONS

Model No. IV9420GL IV9435GL IV9620GL IV9635GL IV96100GL
Insertion tube Scope diameter Φ4.0 mm Φ6.0 mm

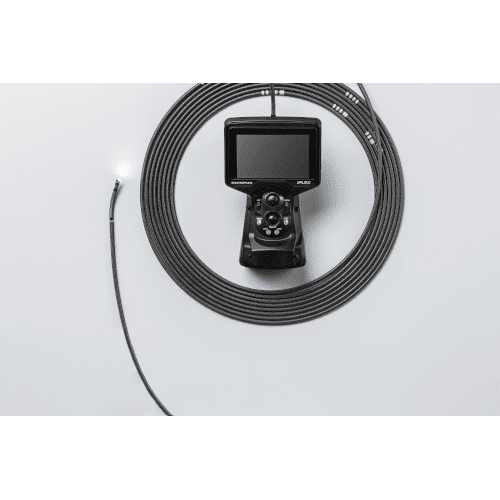

Scope length 2.0 m 3.5 m 2.0 m 3.5 m 10.0 m
Exterior High-durability tungsten braid
Tube flexibility Uniform stiffness TaperedFlex tube with flexibility gradually
increasing toward the distal end
Temperature sensor 2-stage indicator for high temperature warning
Articulation section Articulation angle
up/down/right/left
130° 150° 110°
Articulation operation TrueFeel scope tip articulation with electronic articulation
Approx. system weight (with battery) 1.15 kg (2.5 lbs) 1.21 kg (2.6 lbs) 1.23 kg (2.7 lbs) 1.34 kg (2.9 lbs) 1.83 kg (4.0 lbs)
Dimensions (W x D x H) 128 mm × 203 mm × 110 mm (5 in. × 8 in. × 4.3 in.)
Dimensions of carrying case 455 mm × 330 mm × 185 mm (18 in. × 13 in. × 7.2 in.) (carry-on size on most airlines)
Illumination LED illumination
※Extend the life of the battery by using the ECO mode lighting control
Display 4.3-inch WVGA LCD with capacity-type touch panel
Power supply AC power 100 V to 240 V, 50/60 Hz (with supplied AC adaptor)
Battery 7.4 V nominal, approx. (with supplied battery)
Battery operation time:approx. 90minutes
Video output standard HDMI Type C  HDMI 1.4
Head set (mic in/ audio out) Φ3.5 mm mini plug CTIA
Live image streaming Attach the recommended USB wireless LAN adaptor to the type A USB connector

SOFTWARE FEATURES

Image features 5X digital zoom, 16-step brightness control
Gain control 4-step adjustable gain control (Manual, Auto, Wider1, Wider2)
Dynamic noise rediction Available
Display text options 30-character title display
Note text options 30-character title display、mark, free drawing
Image display functions Live image can be inverted to right and left, inverted to up and down, and rotated 180 degrees

RECORDING MANAGEMENT FUNCTIONS

Recording media SDHC  (*with supplied SDHC)
micro SDHC (using the recommended parts) *Set the constant video function to ON
Internal memory Available (only the still images are recorded)
Overlay Selectable 30-character title with date, time, optical tip, OLYMPUS logo, title, and system setting
Thumbnail image display Recorded images can be displayed as thumbnails
Still image recording Resolution H768 x V576(Pixel)
Still image recording Recording format Compressed JPEG format
Video recording Resolution H768 x V576(Pixel)
Video recording Recording format MPEG 4 AVC/H.264
comforms to baseline profile.  Windows Media Player 12 compatible
Video recording Frame rate 60 fps /30 fps

MEASUREMENT FUNCTIONS

Scalar measurement Using reference length to measure object length

STEREO MEASUREMENT FUNCTIONS — UPGRADE FOR OPTIONAL FUNCTIONS

Distance Distance between two points
Point-to-line Perpendicular distance between a point and a user-defined line
Depth Orthogonal depth/height distance between a point and a user-defined plane
Area/Lines Multiple point circumference and area measurement

OPERATING ENVIRONMENT

Operating temperature Insertion tube In air: -25 °C to 100 °C (-13 °F to 212 °F); in water: 10 °C to 30 °C (50 °F to 86 °F)
Operating temperature Other parts In air: -10 °C to 40 °C (14 °F to 104 °F) (with battery)
In air: 0 °C to 40 °C (32 °F to 104 °F) (with AC power adaptor and battery charge)
Relative humidity All parts 15 to 90%
Liquid resistance All parts Operable when exposed to machine oil, light oil, or 5% saline solution
Dust proofing and water proofing Insertion tube Operable under water with viewing tip adaptor attached
Not operable underwater with stereo measurement tip adaptors
IV94 series — Up to an equivalent to 3.5 m (11.5 ft) in depth
IV96 series — Up to an equivalent to 10 m (32.9 ft) in depth.
Dust proofing and water proofing Other parts IP65; not operable under water (batter and other covers must be closed)

MIL-STD COMPLIANCE

The operating environment performance is confirmed by the following MIL-STD-810G and MIL-STD-461G.
No warranty is given as to damage-free under any conditions. Please ask Olympus sales representative for details.

Type Method
Vibration MIL-STD-810G、METHOD 514.7 Procedure I (General vibration test)
Shock MIL-STD-810G、METHOD 516.7 Procedure IV (Transit drop test)
Water Resistance MIL-STD-810G、METHOD 506.6 Procedure I (Rain and blowing rain test)
Humidity MIL-STD-810G、METHOD 507.6 Procedure II
Salt Fog MIL-STD-810G、METHOD 509.6
Sand and Dust MIL-STD-810G、METHOD 510.6 Procedure I (Blowing dust test)
Icing/Freezing Rain MIL-STD-810G、METHOD 521.4
Explosive Atmosphere MIL-STD-810G、METHOD 511.6 Procedure I (Operation in an explosive atmosphere test)
Electromagnetic Interference (EMI) MIL-STD-461G、RS103 All ships above decks

OPTICAL TIP ADAPTOR SPECIFICATIONS

4.0 mm Viewing Tip Adaptors

AT80D/FF-IV94G AT120D/NF-IV94G AT120D/FF-IV94G AT100S/NF-IV94G AT100S/FF-IV94G
Optical system Field of view 80° 120° 120° 100° 100°
Direction of view Forward Side
Depth of field*1 35 to ∞ mm 2 to 200 mm 17 to ∞ mm 2 to 15 mm 8 to ∞ mm
Distal end Outer diameter*2 Φ4.0 mm
Distal end*3 19.0 mm 21.7 mm
Oil clearing Available

6.0 mm Viewing Tip Adaptors

AT40D-IV96G AT80D/NF-IV96G AT80D/FF-IV96G AT120D/NF-IV96G AT120D/FF-IV96G
Optical system Field of view 40° 80° 80° 120° 120°
Direction of view Forward
Depth of field*1 200 to ∞ mm 9 to ∞ mm 35 to ∞ mm 2 to 200 mm 19 to ∞ mm
Distal end Outer diameter*2 Φ6.0 mm
Distal end*3 18.4 mm 18.9 mm 18.8 mm 18.9 mm 18.8 mm
Oil clearing Available
AT80S-IV96G AT120S/NF-IV96G AT120S/FF-IV96G AT220D-IV76 AT100D/100S-IV76
Optical system Field of view 80° 120° 120° 220° 100°/100°
Direction of view Side Forward Forward/Side
Depth of field*1 15 to ∞ mm 1 to 25 mm 3 to ∞ mm 1.6 to ∞ mm 2.0 to ∞ mm
Distal end Outer diameter*2 Φ6.0 mm Φ8.4 mm Φ6.0 mm
Distal end*3 24.2 mm 21.1 mm 29.5 mm
Oil clearing

Stereo Tip Adaptors (4.0 mm and 6.0 mm)

AT50D/50D-IV94 AT50S/50S-IV94 AT60D/60D-IV96 AT60S/60S-IV96
Optical system Field of view 50°/50° 60°/60°
Direction of view Forward Side Forward Side
Depth of field*1 5 to ∞ mm 4 to ∞ mm 5 to ∞ mm 4 to ∞ mm
Distal end Outer diameter*2 Φ4.0 mm Φ6.0 mm
Distal end*3 24.3 mm 28.4 mm 24.9 mm 31.3 mm

*1. Indicates the viewing distance with optimal focus.
*2. The adaptor can be inserted into a ø4.0 mm, ø6.0 mm, and ø8.4 mm hole when it is mounted on the scope.
*3. Indicates the length of the rigid portion at the scope’s distal end when mounted.

IPLEX G Lite videoscope dimensions

IPLEX G Lite videoscope dimensions
